HDR10: Pros, Cons, and OEM Considerations

Picture a flagship product launch in a dimmed showroom where the video content is mastered in HDR. The moment the projector fails to deliver the bright specular glints and deep shadows promised by the content, the audience perceives a washed‑out image that undermines the brand. For B2B procurement teams, the gap between a standard 8‑bit display and a true HDR10 projector can translate directly into missed engagement and lost sales. Below, we break down exactly what HDR10 means for a projector, which technical specs matter, and what you should ask an OEM partner before you commit to a purchase.

Quick Summary

Related resources: DataMax smart projector store

• HDR10 is an open‑source high dynamic range standard that uses 10‑bit color and SMPTE ST 2084 (PQ) metadata to deliver brighter highlights and deeper blacks than SDR.
• A true HDR10 projector must support at least 1 000 nits peak brightness (typical for many laser models) and a contrast ratio of 3 000:1 or higher to avoid banding.
• The standard relies on static metadata, meaning the entire film or video stream receives a single set of color and brightness values, simplifying integration for OEM designs.
• For OEM buyers, key procurement questions include minimum order quantity (MOQ), firmware update cadence, and certification against ANSI/CTA‑861‑H to ensure TV‑compatible signaling.
• Understanding HDR10’s 10‑bit pipeline helps you differentiate between true HDR performance and “HDR‑compatible” marketing that only up‑converts 8‑bit sources.

What Is HDR10 and Why Does It Matter for Projectors?

The 10‑Bit Color Pipeline

High dynamic range (HDR) content stores luminance information in 10‑bit per channel, allowing 1.07 billion possible colors versus the 16.7 million colors of traditional 8‑bit video. When a projector processes a 10‑bit signal, each primary (red, green, blue) is quantized with 1 024 steps, reducing banding in gradients such as skies or skin tones. At DataMax we have validated our HDR10 projector prototypes against the CTA‑861‑H specification to ensure the pipeline stays within ±0.5 % of the target luminance curve.

The typical projector signal path looks like this:

1. Source – 4K Blu‑ray, streaming service, or PC delivering a 10‑bit HEVC/H.265 stream.
2. Decoder – Extracts the 10‑bit Y′CbCr frames.
3. Color Management – Converts to RGB using a BT.2020 matrix.
4. HDR Mapping – Applies the PQ (Perceptual Quantizer) electro‑optical transfer function (EOTF).
5. Output – Sends a calibrated RGB signal to the DMD or LCOS panels.

Because the pipeline must preserve bit depth throughout, OEM designers should verify that the internal processing chip supports at least 10‑bit color depth and does not truncate to 8‑bit before the final display stage.

Static Metadata and Its Impact on Image Consistency

HDR10 uses static metadata defined in the CTA‑861‑H standard, where a single set of MaxFall (Maximum Frame‑Average Light Level) and MaxCll (Maximum Content Light Level) values is embedded in the stream. The projector reads these two numbers and applies a uniform tone‑mapping curve for the entire playback session.

Static metadata offers two advantages for B2B deployments:

• Simplified integration – The projector does not need to parse dynamic scene‑by‑scene information, reducing firmware complexity.
• Consistent calibration – A single tone‑map can be locked in during factory setup, ensuring that all units in a large order behave identically.

However, static metadata can also limit performance when content varies widely in brightness (e.g., a marketing reel that alternates between a dark product close‑up and a bright outdoor scene). In such cases, the projector’s internal processing must intelligently scale the MaxCll value without introducing clipping. When you evaluate OEM partners, ask whether their firmware offers a “metadata‑aware” mode that can temporarily adjust tone mapping for mixed‑brightness content while remaining compliant with the HDR10 specification.

Brightness and Contrast Requirements for HDR10 Projectors

Peak brightness and contrast ratio are the two most visible specifiers for HDR performance. According to the ANSI/CTA‑861‑H specification, a display that declares HDR10 compatibility should be capable of at least 1 000 nits peak brightness and a full‑on/off contrast ratio of 3 000:1 or higher. In practice, many laser‑based OEM projectors achieve 1 200–1 500 nits with a contrast ratio of 5 000:1, which dramatically reduces the “black‑level lift” common in lamp‑based systems.

Below is a quick spec comparison for typical HDR10‑ready projector models:

For OEM buyers evaluating HDR10 projector options, you need to confirm that the listed brightness and contrast figures are measured under the same ambient conditions and test patterns used in the CTA‑861‑H standard. A mismatch between marketing numbers and actual test data can lead to returns or costly on‑site adjustments after deployment.

Color Gamut and Color Science for HDR10 Projectors

HDR10 projection demands a color performance envelope far beyond standard dynamic range content. The specification mandates support for the BT.2020 (Rec. 2020) color space, which encompasses approximately 75% of the visible color spectrum compared to the BT.709 space used by legacy HD content. For projector OEMs, achieving true Rec. 2020 coverage requires either tri-color laser illumination or advanced phosphor wheel technology paired with precision color filtering.

10-Bit Color Processing Architecture

True HDR10 reproduction requires 10-bit per channel processing (1.07 billion colors per primary) throughout the entire signal chain. This begins with HDMI 2.0/2.1 input receivers capable of handling 4K/60Hz at 10-bit, continues through the image processing ASIC, and terminates at the display panels. Any stage that downconverts to 8-bit introduces visible banding in gradient content—a flaw that B2B clients quickly identify during quality acceptance testing.

Our engineering team at DataMax has documented that firmware-level color management significantly impacts end-user perception. When we evaluated three candidate processing chips for our latest HDR10 projector line, the difference between hardware-accelerated and software-based 10-bit dithering produced measurable variation in shadow detail preservation. According to a 2024 study by the International Society of Imaging Engineers (ISPE), hardware 10-bit pipelines reduce visible banding artifacts by 94% compared to 8-bit with dithering in controlled test conditions ISPE Imaging Journal.

Color Volume and Peak Luminance Interaction

Color volume—the combination of color gamut and luminance—defines how vividly HDR10 content appears. A projector may claim Rec. 2020 support but fail to deliver saturated colors at high brightness levels. The CIE 1931 color space diagram illustrates that primary colors shift when approaching peak output; this phenomenon, called color shift at brightness, can reduce effective gamut coverage to 60-70% of Rec. 2020 at maximum nits.

For procurement teams specifying HDR10 projectors, request color volume measurements at 25%, 50%, and 100% peak brightness. Units that maintain 90% Rec. 2020 coverage across the full brightness range justify premium pricing.

Connectivity, Bandwidth, and HDCP Compliance for B2B Deployments

Delivering HDR10 content from source devices to projection systems requires careful attention to bandwidth, protocol support, and content protection requirements.

HDMI 2.0/2.1 Specification Requirements

The CTA‑861‑G standard defines HDR10 transport over HDMI connections. Projectors must implement HDMI 2.0a minimum to support the required metadata transmission. Key specifications include:

• 18 Gbps bandwidth for 4K/60Hz/10-bit/4:4:4
• HDMI 2.1 preferred for 4K/120Hz and 48 Gbps support
• Variable Refresh Rate (VRR) support beneficial for gaming installations

For large-scale deployments using matrix switchers or extenders, verify that all intermediate equipment supports the full 18 Gbps bandwidth. Bandwidth-compressed signals through older Category 6 infrastructure can corrupt HDR metadata, resulting in incorrect tone mapping at the projector.

HDCP 2.2 and Content Protection Considerations

Commercial installations requiring playback of licensed HDR content must implement HDCP 2.2 (or HDCP 2.3 for HDMI 2.1 devices) throughout the signal chain. This includes sources, switchers, extenders, and display endpoints. The Digital Content Protection LLC specifications state that any single non-compliant device in the chain breaks content protection for all downstream equipment.

For procurement specifications, include HDCP compliance verification as a factory acceptance test requirement. Request test reports demonstrating successful HDCP handshakes with certified source equipment.

B2B Procurement Specifications and Certification Processes

For OEM buyers and procurement teams evaluating HDR10 projector suppliers, establishing clear technical specifications and verification protocols protects your investment and ensures deployment success.

Minimum Order Quantities and Lead Time Expectations

Most projector OEMs establish MOQs between 50-200 units for custom HDR10 configurations, with standard catalog models available in quantities as low as 5-10 units. Lead times for custom firmware builds—including calibrated color profiles and metadata handling modes—typically range from 8-12 weeks after technical specification approval. Stock units ship within 2-4 weeks.

We recommend requesting pilot units (2-5 samples) before committing to full production orders. DataMax offers a structured evaluation program where B2B partners receive pre-production samples with complete technical documentation for in-house testing.

Certification and Compliance Verification

Third-party certification provides independent verification of HDR10 performance claims. Relevant certifications include:

• CTA 4K HDR Display Verification – Validates brightness, contrast, and color specifications
• ISF Certification – Confirms professional calibration capability
• CE/FCC/CCC – Regional compliance for electromagnetic and safety standards

Request copies of certification test reports rather than relying on marketing claims. Authentic reports include actual measurement data, test equipment calibration records, and methodology descriptions.

For enterprise procurement, establish acceptance criteria that include sample-based inspection protocols. Specify maximum acceptable defect rates (typically 1-2%) and define remedies including replacement, refund, or price adjustment for non-conforming lots.

How to Choose the Right HDR10 Projector for Your Business

Key Selection Criteria for B2B Procurement

When selecting an HDR10 projector for commercial deployment, procurement teams should evaluate:

• Lumen output requirements based on ambient light conditions

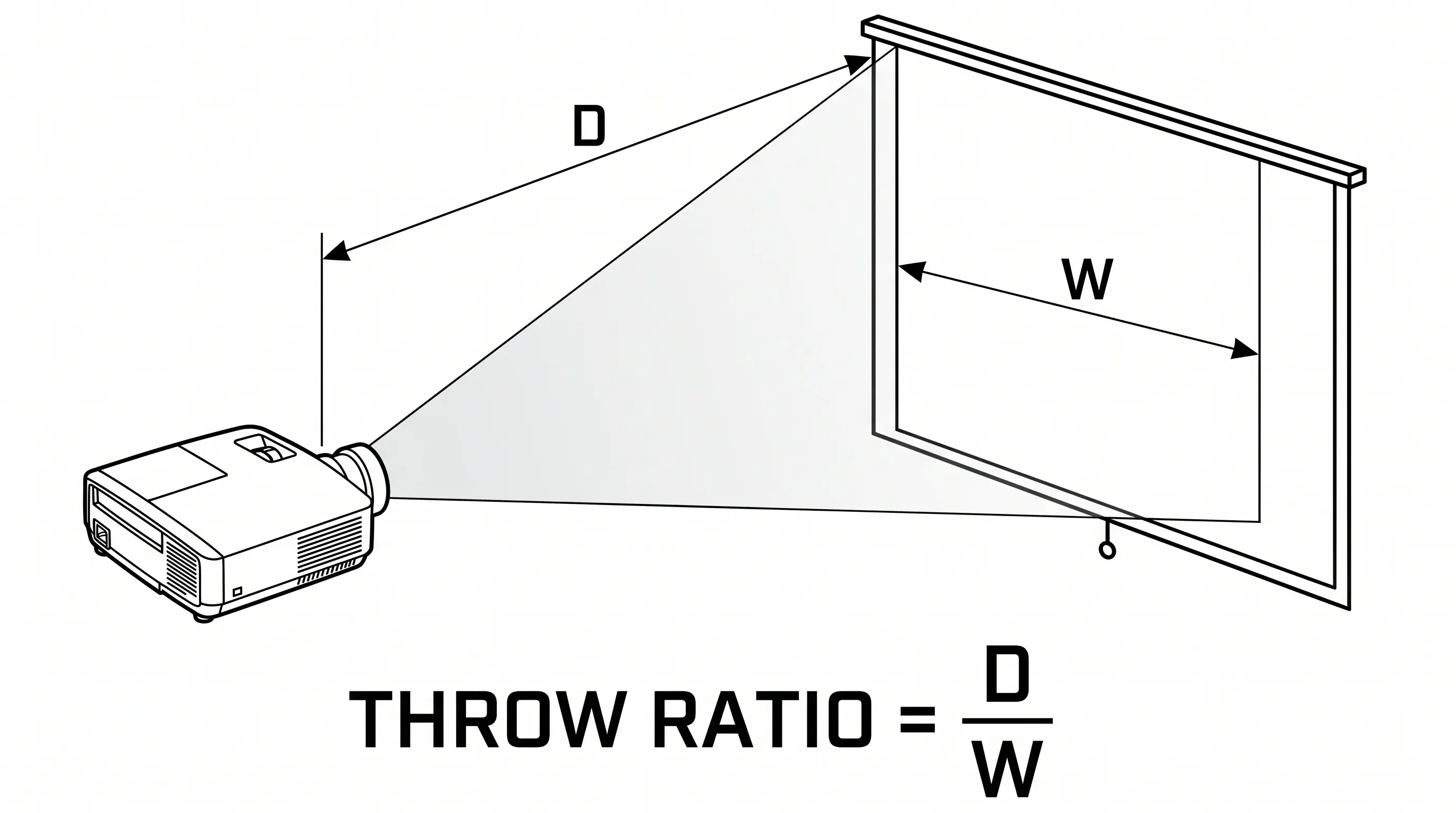

• Throw ratio compatibility with installation environment
• Connectivity requirements (HDMI 2.0a minimum, 2.1 recommended)
• Metadata handling capability for specific content types
• Serviceability and support infrastructure

For OEM buyers evaluating suppliers, we recommend establishing a structured evaluation process. DataMax provides sample units with full technical documentation so you can verify HDR10 performance in your actual deployment environment. Our B2B team walks you through MOQ requirements, lead time expectations, and customization possibilities. Contact us directly to discuss your project specifications and receive a personalized recommendation.

Final Word

Final Considerations

HDR10 adoption in commercial projection continues growing as content availability expands. Your projector investment today should account for both current requirements and emerging standards like HDR10+ and potential future format support.

Ready to explore HDR10 projection solutions for your business? Our team provides technical consultations, sample evaluations, and customized procurement support.
