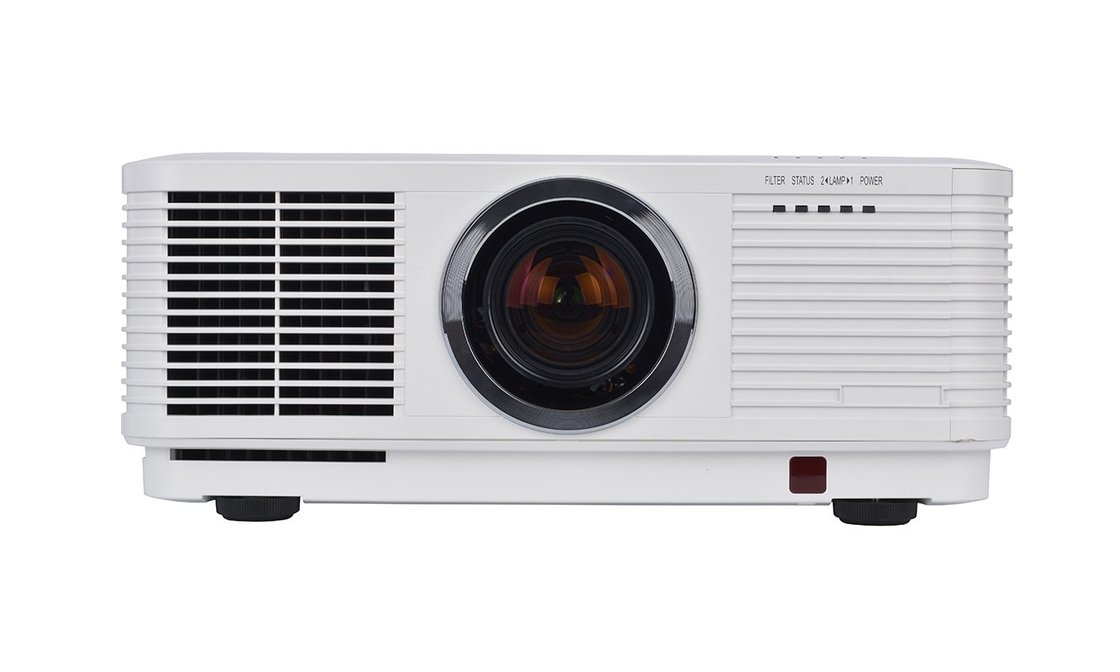

White 3LCD Large Venue Projector High Brightness 10000 Lumens
Large Venue Exhibition Projector 10000 Lumens 3LCD Projector EL-805X
Product Description
3 LCD Large Venue Projector
Large Venue projectors can meet the high-brightness display environment of large halls, lecture halls, conference rooms, and exhibition halls,;
8000-10000 ANSI lumens and high brightness.
1.8x standard electric zoom lens, multi-angle displacement, free from constraints, and make space more free
Specification
| Key parts | ||
| Panel | LCX185A(B11 SML) | |
| PJ Lens | F:1.8~2.6 | |
| Lamp | Panasonic:480W | |
| PW IC | Topaz:PWC878 | |
| Sony IC | CXD3553+CXA3832(1+1) | |
| Brightness | ||
| Brightness (Typ) ( Ansi Lumens ) | 10,000 | |
| Brightness (Min) ( Ansi Lumens ) | 8,500 | |
| Overall Spec | ||
| Panel | Display Panel | 3*0.79“ |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | XGA (1024x768) | |
| Lamp | Lamp Consumption(W) | Nomal: 480W |
| Lamp Lifetime(H) | Normal:5000Hrs/ECO:6000Hrs | |
| Projection Lens | Zoom/Focus | Powered |
| Throw Ratio | 100"@2.986m 1.47(wide)--2.65(tele) | |
| F | F:1.8~2.6 | |
| f | f=24.0mm~43.2mm | |
| Zoom Ratio | 1.8x optics | |
| Screen size | 40-300 Wide(inch) | |
| Lens Shift V | ±60% (Powered) | |
| Lens Shift H | ±30%(Powered) | |
| CR | Contrast Ratio(Min) | 28000:1 with IRIS @ lens center |
| Noise | Noise(dB) | Normal:40dB@2m ECO:34dB@2m |
| Uniformity | Uniformity(Actual Min) -JISX6911 | 90% |
| AR | Aspect Ratio | 16:9(Compatible)/4:3 (Standard) |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| Audio in (mini jack,3.5mm) | *2 | |
| BNC | *5 | |
| Video | *1 | |
| Audio in(L/R) --RCA | *2 | |
| S-Video | *1 | |
| HDMI | *2 (One is Compatible with MHL) | |
| USB-A | *1 1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory) | |
| Micro USB | *1(Display) | |
| RJ45 | *1(Display) | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| Micro USB | *1 1. For upgrade 2. Mico-USB Display | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) | 590W MAX | |
| Power Consumption (ECO) | 370W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Network standby Power Consumption | <3W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter(静电) | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°(auto+manual) H:±15°(manual) Pincushion/Barrel Correction Corner Keystone |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 48~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC, AUTO Keystone |
| Audio muting(Muting) | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic,Standard,Cinema, Blackboard,Colorboard,DICOM | |
| Lamp mode | NORMAL,ECO | |
| Filter Cleaning Cycle | 100/200/300 hours | |
| Cooling time | 60s,90s | |
| Closed caption | Yes | |
| High altitude | Yes(1400~2700m) | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(0S,10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| 360° projection | Yes | |
| Others | Edge Blending-边缘融合 | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) | 481*179*418 mm | |
| Net. Weight (KG) | 9.98 | |
| Packaging Box Dimensions (WxHxD mm) | 620*585*295 mm | |
| Gross. Weight (KG) | ~13.2 | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord, VGA cable, Remote control& RC Battery | |
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Compatible Projector Lens
One Key Change the lens
The bayonet mount system uses a touch-sensitive lens removal method, so that the lens can be easily replaced after installation. Simply unscrew and remove the anti-drop cover, press the release button, and then gently rotate the lens to easily remove it. Similarly, just gently insert and rotate the lens, you can easily complete the lens installation.
Large Projection Area , high image quality, make the presentation impeccable
The engineering series also uses 3LCD high-end display chips, 8000-10000 ANSI lumens and high brightness, 10000:1 high contrast, high resolution, covering full HD, The details are more obvious, and the strong sense of immersion can experience a comfortable visual atmosphere even in a wide space.
Lens Interchangeable
The lens supports 1.8 x Motorized zoom, supports a variety of options, and can be replaced with one button, the "mirror" shows its ability, we only do more professional
WUXGA Native resolution
WUXGA resolution (1920 × 1200 pixels) can present full HD video (1920 × 1200 pixels) images. Even when projecting on a large screen, it can still maintain clear and vivid details, giving users a vibrant visual experience
10000:1 high contrast,
Full picture layering With a high contrast ratio of 10000:1, the picture is full of layers, and the details and outlines of the picture are clearly displayed on the screen. The outstanding performance makes the display in various environments more perfect and smooth.
Compatible Lens As Follows
Standard Lens OL-XL7100FR
Short Throw Lens OL-XL7100SZLong Zoom Lens OL-XL7100LZ
Long Zoom Lens OL-XL7100TZ
| Model | OL-XL7100FR | OL-XL7100SZ | OL-XL7100LZ | OL-XL7100TZ |
| Description | Standard Lens | Short Throw Lens | Long Throw Lens | Tele Throw zoom Lens |
| Zoom/Focus | x1.8/power | X1.3/ Power | x1.7/power | x1.7/power |
| Focus Length | 24.0-43.2 mm | 19.3-24.9mm | 42.3-71.8mm | 70.3-119.5mm |
| Throw Ratio | 1.8-2.6:1 | 1.2-1.5:1 | 2.6-4.4:1 | 4.3-4.3:1 |
